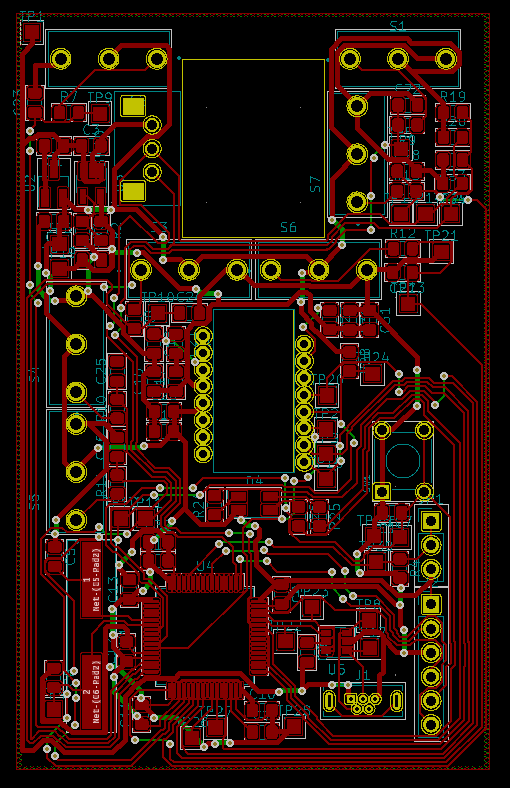

Pictures/board_footprints.png

87.5 KiB

Pictures/board_schematic.png

167 KiB

# MOUSE - Minimal Output User Signal Encoder ## MOUSE - Minimal Output User Signal Encoder
_**Intended features**_ # _**Intended features**_
----------- -----------
- Button functionality built into the scroll wheel - One should be able to click the scroll wheel. - Button functionality built into the scroll wheel - One should be able to click the scroll wheel.
- additional buttons found on the mouse: - additional buttons found on the mouse:
...@@ -10,14 +10,15 @@ _**Intended features**_ ...@@ -10,14 +10,15 @@ _**Intended features**_
- Led user settings. - Led user settings.
- Custom shell. 3D printed. - Custom shell. 3D printed.
_**Design overview**_ # _**Design overview**_
----------- -----------
![Overview diagram](Pictures/Gaming_Mouse.jpg) ![Overview diagram](Pictures/Gaming_Mouse.jpg)
_Buttons provide:_ _Buttons provide:_
1. Right and left click. 1. Right and left click.
2. Forward and backwards, which are two macro buttons. 2. Mouse wheel click.
3. Sense up and sense down, two buttons to control mouse sensitivity. 3. Forward and backwards, which are two macro buttons.
4. Sense up and sense down, two buttons to control mouse sensitivity.
_Sensor provide position data._ _Sensor provide position data._
...@@ -25,24 +26,29 @@ _PSU provide:_ ...@@ -25,24 +26,29 @@ _PSU provide:_
1. 3.3V to the buttons and mcu. 1. 3.3V to the buttons and mcu.
2. 1.9V to the sensor. 2. 1.9V to the sensor.
_**Circuit design**_ # _**Circuit design**_
----------- -----------

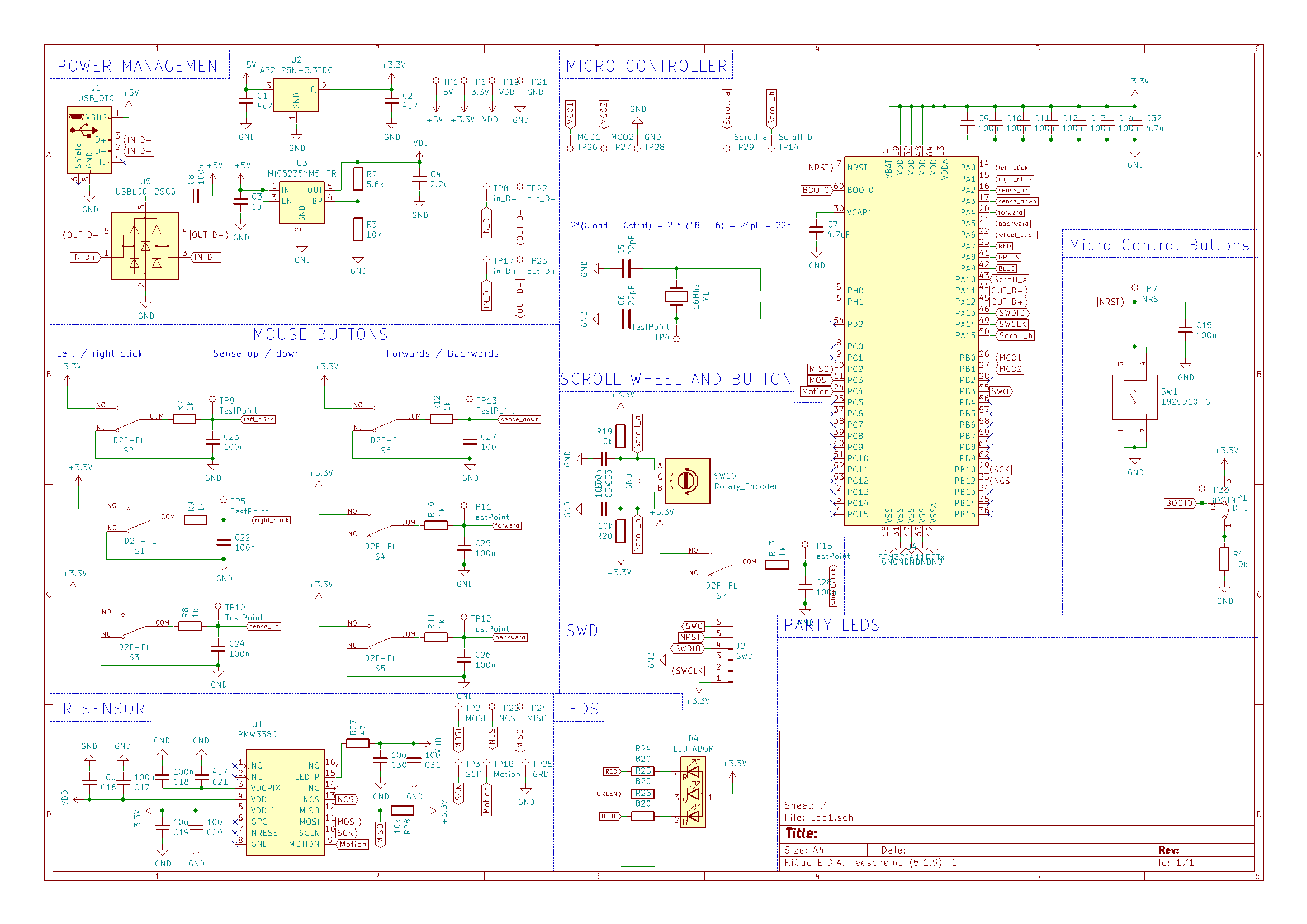

_**KiCAD diagram**_
-----------
![KiCAD diagram](Pictures/board_schematic.png)
# _**Board design**_ # _**Board design**_
_**KiCAD model**_ _**KiCAD model**_
----------- -----------
![KiCAD model](Pictures/Insert_name_here.png) ![KiCAD model](Pictures/board_footprints.png)
_**3D model**_ _**3D model**_
----------- -----------
![3D model diagram](Pictures/3d_board.png) ![3D model diagram](Pictures/3d_board.png)
_**Real board**_ _**Real board**_
----------- -----------
![Real board picture](Pictures/Real_board.jpg) ![Real board picture](Pictures/Real_board.jpg)
_**Custom shell**_ # _**Custom shell**_
----------- -----------
**_Contributors_** # **_Contributors_**
----------- -----------
Edward Källstedt - edwkll-7@student.ltu.se (Grade goal 5) Edward Källstedt - edwkll-7@student.ltu.se (Grade goal 5)
......

87.5 KiB

#![no_main]
#![no_std]
use embedded_hal::spi::MODE_3;
use panic_rtt_target as _;
use rtt_target as _;
use cortex_m::{peripheral::DWT};
use embedded_hal::digital::v2::{OutputPin};
use stm32f4xx_hal::{
otg_fs::{UsbBus, UsbBusType, USB},
prelude::*,
};
use usb_device::{bus::UsbBusAllocator, prelude::*};
use usbd_hid::{
descriptor::{generator_prelude::*},
hid_class::HIDClass
};
use app::{DwtDelay, pmw3389::{self, Register}};
use usbd_hid::descriptor::SerializedDescriptor;
use usbd_hid::descriptor::AsInputReport;
use usbd_hid::descriptor::gen_hid_descriptor;
#[gen_hid_descriptor(
(collection = APPLICATION, usage_page = GENERIC_DESKTOP, usage = MOUSE) = {
(collection = PHYSICAL, usage = POINTER) = {
(usage_page = BUTTON, usage_min = 0x01, usage_max = 0x05) = {
#[packed_bits 5] #[item_settings data,variable,absolute] buttons=input;
};
(usage_page = GENERIC_DESKTOP,) = {
(usage = X,) = {
#[item_settings data,variable,relative] x=input;
};
(usage = Y,) = {
#[item_settings data,variable,relative] y=input;
};
(usage = WHEEL,) = {
#[item_settings data,variable,relative] wheel=input;
};
};
};
}
)]
pub struct PMouseReport {
pub buttons: u8,
pub x: i8,
pub y: i8,
pub wheel: i8, // Scroll down (negative) or up (positive) this many units
}
use rtic::cyccnt::{U32Ext as _};
use stm32f4xx_hal::{
gpio::Speed,
gpio::{
gpiob::{PB10, PB12},
gpioc::{PC2, PC3},
Alternate, Output, PushPull,
},
spi::Spi,
};
type PMW3389T = pmw3389::Pmw3389<
Spi<
stm32f4xx_hal::stm32::SPI2,
(
PB10<Alternate<stm32f4xx_hal::gpio::AF5>>,
PC2<Alternate<stm32f4xx_hal::gpio::AF5>>,
PC3<Alternate<stm32f4xx_hal::gpio::AF5>>,
),
>,
PB12<Output<PushPull>>,
>;
use rtt_target::{rprintln, rtt_init_print};
use stm32f4xx_hal::{
gpio::{gpioa::PA7, gpioa::PA8, gpioa::PA9},
gpio::{gpioa::PA0, gpioa::PA1, gpioa::PA2, gpioa::PA3, gpioa::PA4, gpioa::PA5, gpioa::PA6, gpioa::PA10, gpioa::PA15, Input, PullUp},
};
const OFFSET: u32 = 1_000_000;
#[rtic::app(device = stm32f4xx_hal::stm32, monotonic = rtic::cyccnt::CYCCNT, peripherals = true)]
const APP: () = {
struct Resources {
// late resources
hid: HIDClass<'static, UsbBusType>,
usb_dev: UsbDevice<'static, UsbBusType>,
pmw3389: PMW3389T,
led_r: PA7<Output<PushPull>>,
led_g: PA8<Output<PushPull>>,
led_b: PA9<Output<PushPull>>,
r_click: PA1<Input<PullUp>>,
l_click: PA0<Input<PullUp>>,
w_click: PA6<Input<PullUp>>,
M1_click: PA4<Input<PullUp>>,
M2_click: PA5<Input<PullUp>>,
scl_plus: PA2<Input<PullUp>>,
scl_minus: PA3<Input<PullUp>>,
scroll_up: PA10<Input<PullUp>>,
scroll_down: PA15<Input<PullUp>>,
Scaler: f32,
Counter: u8,
Led_Counter: u16,
Scale_modify: bool,
}
// Initializing function
#[init(schedule = [toggle_speed])]
fn init(cx: init::Context) -> init::LateResources {
static mut USB_BUS: Option<UsbBusAllocator<UsbBusType>> = None;
static mut EP_MEMORY: [u32; 1024] = [0; 1024];
rtt_init_print!();
rprintln!("init");
let mut core = cx.core;
core.DCB.enable_trace();
DWT::unlock();
core.DWT.enable_cycle_counter();
let rcc = cx.device.RCC.constrain();
let clocks = rcc
.cfgr
.sysclk(48.mhz())
.pclk1(24.mhz())
.freeze();
let gpioa = cx.device.GPIOA.split();
let usb = USB {
usb_global: cx.device.OTG_FS_GLOBAL,
usb_device: cx.device.OTG_FS_DEVICE,
usb_pwrclk: cx.device.OTG_FS_PWRCLK,
pin_dm: gpioa.pa11.into_alternate_af10(),
pin_dp: gpioa.pa12.into_alternate_af10(),
};
USB_BUS.replace(UsbBus::new(usb, EP_MEMORY));
let hid = HIDClass::new(USB_BUS.as_ref().unwrap(), PMouseReport::desc(), 1);
let usb_dev = UsbDeviceBuilder::new(USB_BUS.as_ref().unwrap(), UsbVidPid(0xc410, 0x0000))
.manufacturer("Mouse company")
.product("Mouse")
.serial_number("Serial_Number")
.device_class(0)
.build();
let gpiob = cx.device.GPIOB.split();
let gpioc = cx.device.GPIOC.split();
let sck = gpiob.pb10.into_alternate_af5();
let miso = gpioc.pc2.into_alternate_af5();
let mosi = gpioc.pc3.into_alternate_af5();
let cs = gpiob.pb12.into_push_pull_output().set_speed(Speed::High);
let spi = Spi::spi2(
cx.device.SPI2,
(sck, miso, mosi),
MODE_3,
stm32f4xx_hal::time::KiloHertz(2000).into(),
clocks,
);
let delay = DwtDelay::new(&mut core.DWT, clocks);
let mut pmw3389 = pmw3389::Pmw3389::new(spi, cs, delay).unwrap();
pmw3389.write_register(Register::Motion, 0x20);
pmw3389.write_register(Register::RippleControl, 0x07);
pmw3389.write_register(Register::ResolutionL, 0x00);
pmw3389.write_register(Register::ResolutionH, 0x42);
pmw3389.write_register(Register::Config2, 0x20);
pmw3389.write_register(Register::AngleTune, 0x00);
pmw3389.write_register(Register::FrameCapture, 0x00);
pmw3389.write_register(Register::RunDownshift, 0x32);
pmw3389.write_register(Register::Rest1RateLower, 0x00);
pmw3389.write_register(Register::Rest1RateUpper, 0x00);
pmw3389.write_register(Register::Rest1Downshift, 0x1F);
pmw3389.write_register(Register::Rest2RateLower, 0x63);
pmw3389.write_register(Register::Rest2RateUpper, 0x00);
pmw3389.write_register(Register::Rest2Downshift, 0xBC);
pmw3389.write_register(Register::Rest3RateLower, 0xF3);
pmw3389.write_register(Register::Rest3RateUpper, 0x01);
pmw3389.write_register(Register::Observation, 0x00);
pmw3389.write_register(Register::MinSQRun, 0x10);
pmw3389.write_register(Register::RawDataThreshold, 0x0A);
pmw3389.write_register(Register::Control2, 0x00);
pmw3389.write_register(Register::Config5L, 0x00);
pmw3389.write_register(Register::Config5H, 0x00);
pmw3389.write_register(Register::LiftCutoffTune3, 0x00);
pmw3389.write_register(Register::AngleSnap, 0x00);
pmw3389.write_register(Register::LiftCutoffTune1, 0x00);
pmw3389.write_register(Register::MotionBurst, 0x00);
pmw3389.write_register(Register::LiftConfig, 0x02);
pmw3389.write_register(Register::LiftCutoffTune2Timeout, 0x27);
pmw3389.write_register(Register::LiftCutoffTune2MinLength, 0x09);
pmw3389.write_register(Register::PWMPeriodCnt, 0x00);
pmw3389.write_register(Register::PWMWidthCnt, 0x00);
let scaler = 1.0;
let scale_modify = false;
let now = cx.start;
cx.schedule.toggle_speed(now + ((OFFSET)).cycles()).unwrap();
// pass on late resources
init::LateResources {
hid,
usb_dev,
led_r: gpioa.pa7.into_push_pull_output(),
led_g: gpioa.pa8.into_push_pull_output(),
led_b: gpioa.pa9.into_push_pull_output(),
r_click: gpioa.pa1.into_pull_up_input(),
l_click: gpioa.pa0.into_pull_up_input(),
w_click: gpioa.pa6.into_pull_up_input(),
M1_click: gpioa.pa4.into_pull_up_input(),
M2_click: gpioa.pa5.into_pull_up_input(),
scl_plus: gpioa.pa2.into_pull_up_input(),
scl_minus: gpioa.pa3.into_pull_up_input(),
scroll_up: gpioa.pa10.into_pull_up_input(),
scroll_down: gpioa.pa15.into_pull_up_input(),
Scaler: scaler,
Counter: 0,
Led_Counter: 0,
Scale_modify: scale_modify,
pmw3389,
}
}
#[idle]
fn idle(_cx: idle::Context) -> ! {
loop {
continue;
}
}
//Increase or decrease the sensitivity of the mouse
#[task(resources = [scl_minus, scl_plus, Scaler, Scale_modify], priority = 1, schedule = [toggle_speed])]
fn toggle_speed(mut cx: toggle_speed::Context) {
if cx.resources.scl_plus.is_high().unwrap() && !*cx.resources.Scale_modify && cx.resources.scl_minus.is_low().unwrap() {
*cx.resources.Scale_modify = true;
cx.resources.Scaler.lock(|Scaler| {
*Scaler += 0.1;
});
}
else{
if cx.resources.scl_plus.is_low().unwrap() && cx.resources.scl_minus.is_low().unwrap(){
*cx.resources.Scale_modify = false;
}
}
if cx.resources.scl_minus.is_high().unwrap() && !*cx.resources.Scale_modify && cx.resources.scl_plus.is_low().unwrap() {
*cx.resources.Scale_modify = true;
cx.resources.Scaler.lock(|Scaler| {
if *Scaler != 1.0 && !(*Scaler < 1.0){
*Scaler -= 0.1;
}
else{
*Scaler = 1.0;
}
});
}
else{
if cx.resources.scl_plus.is_high().unwrap() && cx.resources.scl_minus.is_high().unwrap(){
*cx.resources.Scale_modify = false;
}
}
cx.schedule.toggle_speed(cx.scheduled + ((OFFSET)).cycles()).unwrap();
}
extern "C" {
fn EXTI0();
}
// Builds and sends the mouse report
#[task(binds=OTG_FS, resources = [Led_Counter, led_r, led_g, led_b, r_click, l_click, w_click, M1_click, M2_click, scroll_up, scroll_down, Scaler, hid, pmw3389, usb_dev], priority = 2)]
fn report(cx: report::Context) {
static mut PREV_UP: bool = false;
static mut PREV_DOWN: bool = false;
//Setting up the resources
let Led_Counter = cx.resources.Led_Counter;
let myScaler = cx.resources.Scaler;
let hid = cx.resources.hid;
let led_r = cx.resources.led_r;
let led_g = cx.resources.led_g;
let led_b = cx.resources.led_b;
let r_click = cx.resources.r_click;
let l_click = cx.resources.l_click;
let w_click = cx.resources.w_click;
let M1_click = cx.resources.M1_click;
let M2_click = cx.resources.M2_click;
let usb_dev = cx.resources.usb_dev;
let up = cx.resources.scroll_up.is_high().unwrap();
let down = cx.resources.scroll_down.is_high().unwrap();
let wheel_count = calculate_scroll(up, down, *PREV_UP, *PREV_DOWN);
*PREV_UP = up;
*PREV_DOWN = down;
//LEDs
let state: i8;
if *Led_Counter == 75{
*Led_Counter = 0 as u16;
if l_click.is_high().unwrap(){
if led_r.is_high().unwrap(){
state = 1;
}
else{
state = 2;
}
}
else if l_click.is_low().unwrap() && r_click.is_high().unwrap(){
//if led_b.is_high().unwrap(){
// state = 3;
//}
//else{
// state = 4;
//}
state = 3;
}
else{
state = 5;
// if led_g.is_high().unwrap(){
// state = 5;
//}
//else{
// state = 6;
//}
}
toggle_led(state, led_r, led_g, led_b);
}
else{
*Led_Counter = *Led_Counter + 1;
}
// Fetch values from the sensor
let (x, y) = cx.resources.pmw3389.read_status().unwrap();
// Build and send the report
let report = PMouseReport {
buttons: ((M1_click.is_high().unwrap() as u8) << 4
| (M2_click.is_high().unwrap() as u8) << 3
| (w_click.is_high().unwrap() as u8) << 2
| (r_click.is_high().unwrap() as u8) << 1
| (l_click.is_high().unwrap() as u8)),
x: ((-x as f32 * *myScaler) as i8)>>1,
y: ((-y as f32 * *myScaler) as i8)>>1,
wheel: wheel_count,
};
hid.push_input(&report).ok();
if usb_dev.poll(&mut [hid]) {
return;
}
}
extern "C" {
fn EXTI1();
}
extern "C" {
fn EXTI2();
}
};
// Toggles the LEDs according to the state
fn toggle_led<E>(state: i8, led_r: &mut dyn OutputPin<Error = E>, led_g: &mut dyn OutputPin<Error = E>, led_b: &mut dyn OutputPin<Error = E>) {
if state == 1{
led_r.set_low();
led_g.set_high();
led_b.set_high();
}
if state == 2{
led_r.set_high();
led_g.set_high();
led_b.set_high();
}
if state == 3{
led_r.set_high();
led_g.set_high();
led_b.set_low();
}
if state == 4{
led_r.set_high();
led_g.set_high();
led_b.set_high();
}
if state == 5{
led_r.set_high();
led_g.set_low();
led_b.set_high();
}
if state == 6{
led_r.set_high();
led_g.set_high();
led_b.set_high();
};
}
// Calculates the scroll direction depending on an incremental encoder
fn calculate_scroll(up: bool, down: bool, prev_up: bool, prev_down: bool) -> i8 {
let mut wheel_count: i8 = 0;
//only update count if values have changed
if up != prev_up || down != prev_down {
//check datasheet of encoder for pattern
if prev_up == prev_down {
if down == prev_down {
wheel_count += 1;
} else {
wheel_count -= 1;
}
} else {
if up == prev_up {
wheel_count += 1;
} else {
wheel_count -= 1;
}
}
}
return wheel_count;
}
0% Loading or .
You are about to add 0 people to the discussion. Proceed with caution.
Please register or to comment
